Everything you need to know about Electrical Transmission

Electrical transmission is the backbone of modern power systems, enabling the efficient transfer of electricity from generation facilities to distribution networks and end-users. This complex infrastructure ensures that homes, industries, and institutions receive reliable power. This article delves into the components, operation, challenges, and innovations in electrical transmission systems.

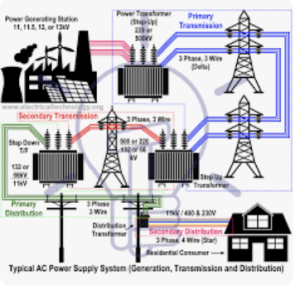

1. Components of Electrical Transmission Systems

1.1 Transformers

• Step-Up Transformers: Increase voltage (e.g., from 11 kV to 765 kV) at generation sites to reduce energy losses during transmission.

• Step-Down Transformers: Decrease voltage at substations for safe distribution (e.g., 33 kV to 12 kV).

1.2 Transmission Lines

• Overhead Lines: Most common, using aluminum conductors reinforced with steel (ACSR) on steel towers.

• Underground Cables: Used in urban areas; more expensive but less susceptible to weather.

• High-Voltage Direct Current (HVDC): Efficient for long-distance (e.g., undersea cables) or interconnecting grids with different frequencies.

1.3 Substations

• House transformers, circuit breakers, and switches to regulate voltage and reroute power.

• Include protective devices like relays to prevent equipment damage during faults.

1.4 Insulators and Towers

• Insulators (e.g., porcelain or composite) prevent current leakage from conductors to towers.

• Towers (pylons) vary in design (lattice, monopole) based on voltage and terrain.

2. How Electrical Transmission Works

2.1 Voltage Levels

• High Voltage (HV): 69–230 kV for regional transmission.

• Extra-High Voltage (EHV): 345–765 kV for long-distance grids.

• Ultra-High Voltage (UHV): >800 kV (e.g., China’s ±1100 kV HVDC lines) minimizes losses over 3,000 km.

2.2 AC vs. DC Transmission

• AC: Dominates grids due to easy voltage transformation; synchronized to a standard frequency (50/60 Hz).

• DC: Preferred for undersea cables (e.g., North Sea Wind Farms) and long-distance bulk transfers (lower losses).

2.3 Grid Architecture

• National Grids: Interconnected networks (e.g., North America’s Eastern, Western, and Texas Interconnections).

• Smart Grids: Integrate digital monitoring (SCADA, phasor measurement units) for real-time load balancing and fault detection.

3. Challenges in Electrical Transmission

3.1 Technical Challenges

• Line Losses: Joule heating causes ~5% energy loss; mitigated by higher voltages.

• Reactive Power Management: Essential for voltage stability; addressed via capacitors or Flexible AC Transmission Systems (FACTS).

• Grid Congestion: Aging infrastructure struggles with peak demand, requiring upgrades.

3.2 Environmental and Social Issues

• Land Use: Overhead lines face opposition due to visual impact; undergrounding is costly.

• Wildlife Impact: Bird collisions with lines; mitigated by marker balls.

• EMF Concerns: Public fears about electromagnetic fields; studies show minimal health risks.

3.3 Renewable Integration

• Intermittency: Solar/wind require grid flexibility (e.g., energy storage, demand response).

• Geographic Mismatch: Remote renewables (e.g., offshore wind) need long-distance transmission.

4. Innovations and Future Trends

4.1 Advanced Technologies

• HVDC and VSC-HVDC: Voltage Source Converters enable efficient offshore wind integration.

• Superconducting Cables: Near-zero losses using liquid nitrogen-cooled materials (e.g., Japan’s pilot projects).

• FACTS Devices: Enhance grid controllability (e.g., STATCOMs for reactive power compensation).

4.2 Digital Transformation

• IoT Sensors: Monitor line sag, temperature, and faults in real time.

• AI and Machine Learning: Predict load patterns and optimize grid operations.

4.3 Decentralization and Microgrids

• Enable local generation (solar + storage) to reduce transmission dependency.

5. Global Case Studies

• China’s UHV Grid: Transmits hydroelectric power from Sichuan to Shanghai (~2,000 km).

• European Super Grid: Links North Sea wind farms with Scandinavian hydropower via HVDC.

• India’s Green Corridor: Connects solar-rich Rajasthan to high-demand regions.

6. Environmental and Social Mitigation

• Undergrounding: Prioritized in sensitive areas (e.g., Germany’s SuedLink).

• Community Engagement: Participatory planning to address land-use conflicts.

• Wildlife Protection: Avian diverters on lines in migratory pathways.

7. Conclusion

Electrical transmission systems are evolving to meet decarbonization goals and technological advancements. Investments in HVDC, smart grids, and superconductors will enhance efficiency, while addressing social and environmental concerns remains critical. The future grid will balance centralized and decentralized resources, ensuring resilience in a renewable-dominated era.
